OVERHAULING A BICYCLE
21
Cranks and Pedals.—It is necessary in the course of
the overhauling to examine the cranks to see that they
are true on the bracket
axle, and that the pedal
spindles are square with
the crank face. The
crank cotters may re-
quire tightening, and in
doing this see that the
cranks are not drawn
out of line, and that the
cotters do not project
too far through the crank
boss, and thus cause the
nut to bind on the
shoulder at the base of
the thread.
A. plated crank can
Fig. 13.

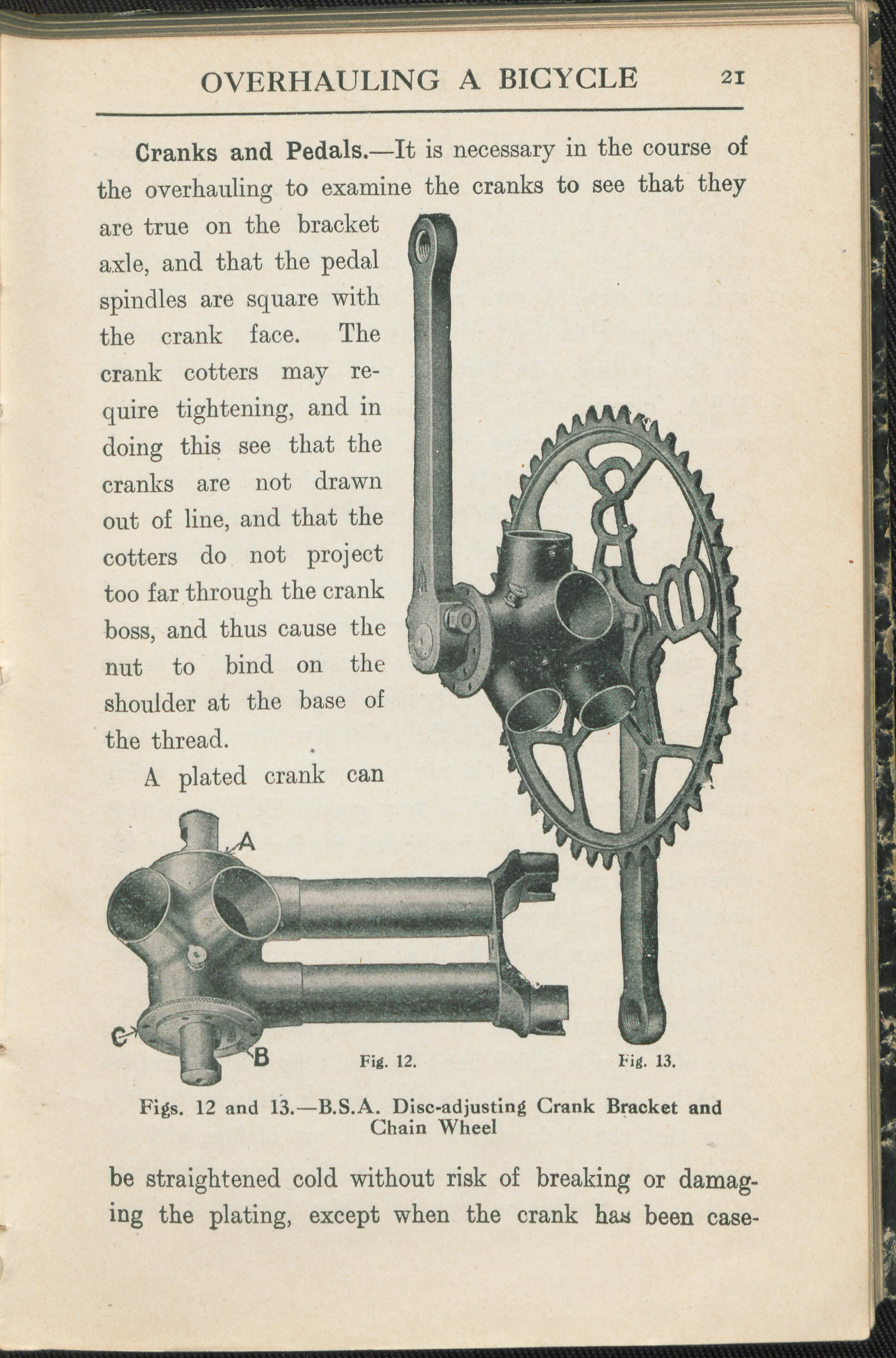

Figs. 12 and 13.—B.S.A. Disc-adjusting Crank Bracket and
Chain Wheel
be straightened cold without risk of breaking or damag-
ing the plating, except when the crank haa been case-
