were necessarily lost in starting and hauling fires.
On this basis the water was evaporated in 12.4
hours, or at the equivalent rate of 13,919 pounds
per hour for feed water at 180 degrees. On the
basis that any good engine under fair conditions
will require but 30 pounds of water per horse-
power per hour, your boilers, during this experi-
ment, though not forced to their utmost, devel-
oped under condition agreed upon, 13919 -s- 30
— 464 horse-power, or 104 horse-power in excess
of the guaranteed power.
The coal required per horse-power per hour is
evidently dependent in any case upon the econ-
omy of the boiler and engine jointly. With an
of 89.4 pounds from a temperature ioo° per lb.
of Cumberland coal; yet the engine was so
economical that there was required but 1.69 lbs.
of coal per horse-power per hour. The equiva-
lent evaporation of your boilers from the same
temperature with anthracite nut coal, much in-
ferior to Cumberland, on the basis of the trial
above mentioned, is 8.547 pounds of water per
pound of coal; so if your boilers were used in
connection with that particular pumping engine,
there would be required but 1.64 pounds of the
inferior coal per horse-power per hour.
The economical performance of your boilers
could undoubtedly be rendered still greater by

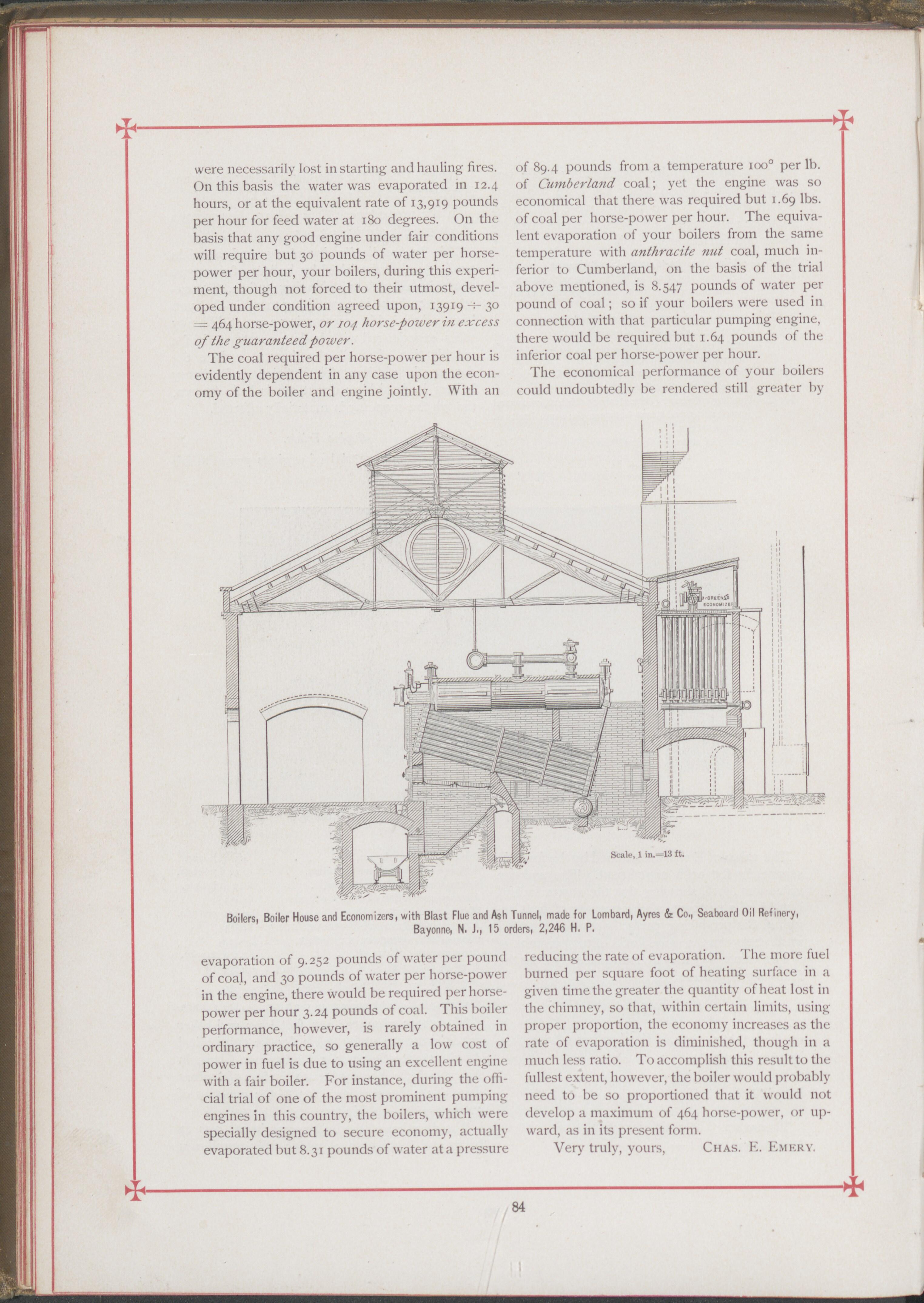

Boilers. Boiler House and Economizers, with Blast Flue and Ash Tunnel, made for Lombard, Ayres & Co., Seaboard Oil Refinery,
Bayonne, N. J.t 15 orders, 2,246 H. P.
evaporation of 9.252 pounds of water per pound
of coal, and 30 pounds of water per horse-power
in the engine, there would be required per horse-
power per hour 3.24 pounds of coal. This boiler
performance, however, is rarely obtained in
ordinary7 practice, so generally a low cost of
power in fuel is due to using an excellent engine
with a fair boiler. For instance, during the offi-
cial trial of one of the most prominent pumping
engines in this country, the boilers, which were
specially designed to secure economy, actually
evaporated but 8.31 pounds of water ata pressure
reducing the rate of evaporation. The more fuel
burned per square foot of heating surface in a
given time the greater the quantity of heat lost in
the chimney, so that, within certain limits, using
proper proportion, the economy increases as the
rate of evaporation is diminished, though in a
much less ratio. To accomplish this result to the
fullest extent, however, the boiler would probably
need to be so proportioned that it would not
develop a maximum of 464 horse-power, or up-
ward, as in its present form.
Very truly, yours, Chas. E. Emery.
84
