VARIABLE GEAR DEVICES
139

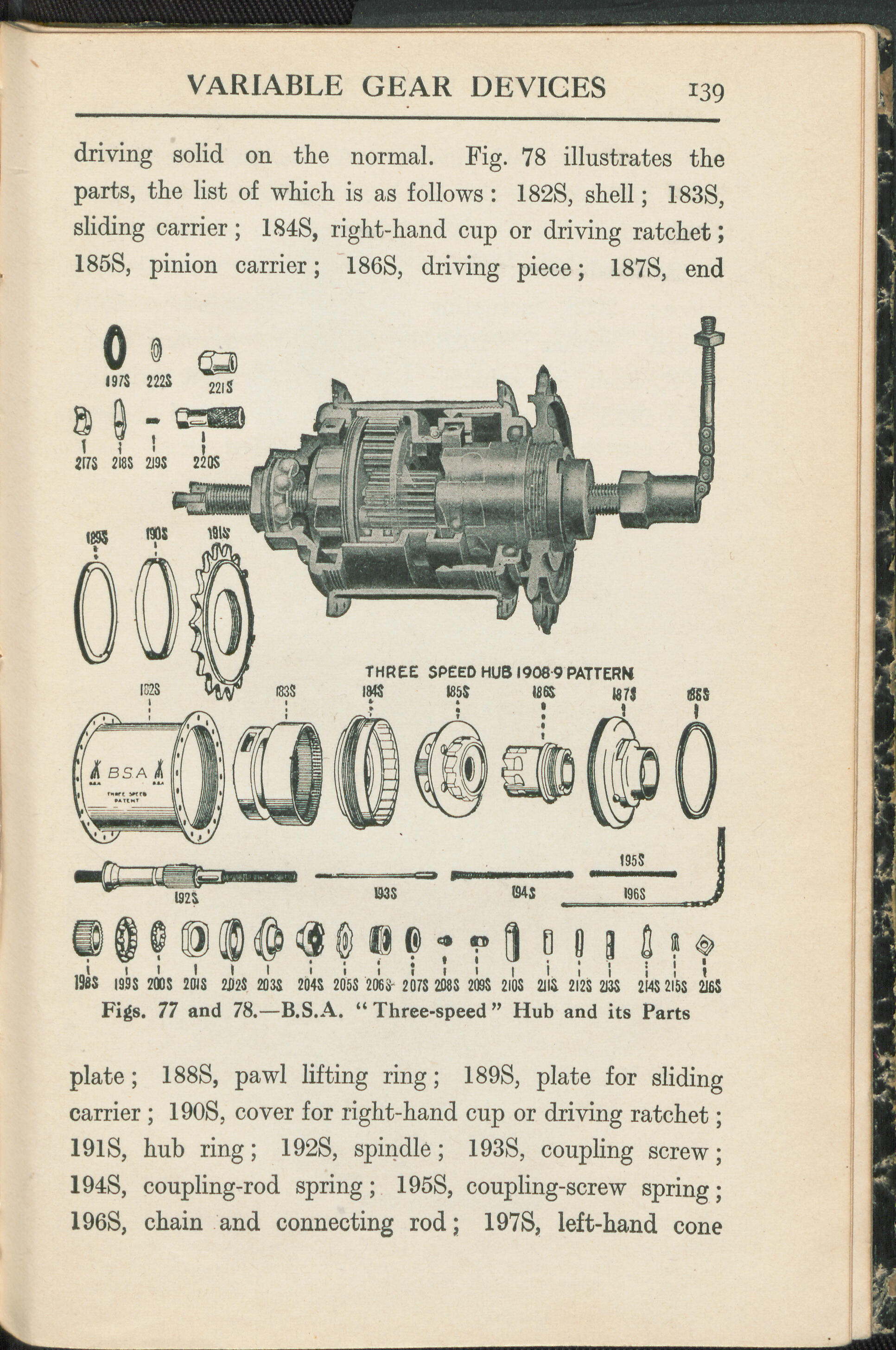

driving solid on the normal. Fig. 78 illustrates the
parts, the list of which is as follows : 182S, shell ; 183S,
sliding carrier ; 184S, right-hand cup or driving ratchet ;
I85S, pinion carrier ; 186S, driving piece ; 187S, end
plate ; 188S, pawl lifting ring ; 189S, plate for sliding
carrier ; 190S, cover for right-hand cup or driving ratchet ;
191S, hub ring ; 192S, spindle ; 193S, coupling screw ;
194S, coupling-rod spring ; 195S, coupling-screw spring ;
196S, chain and connecting rod ; 197S, left-hand cone
