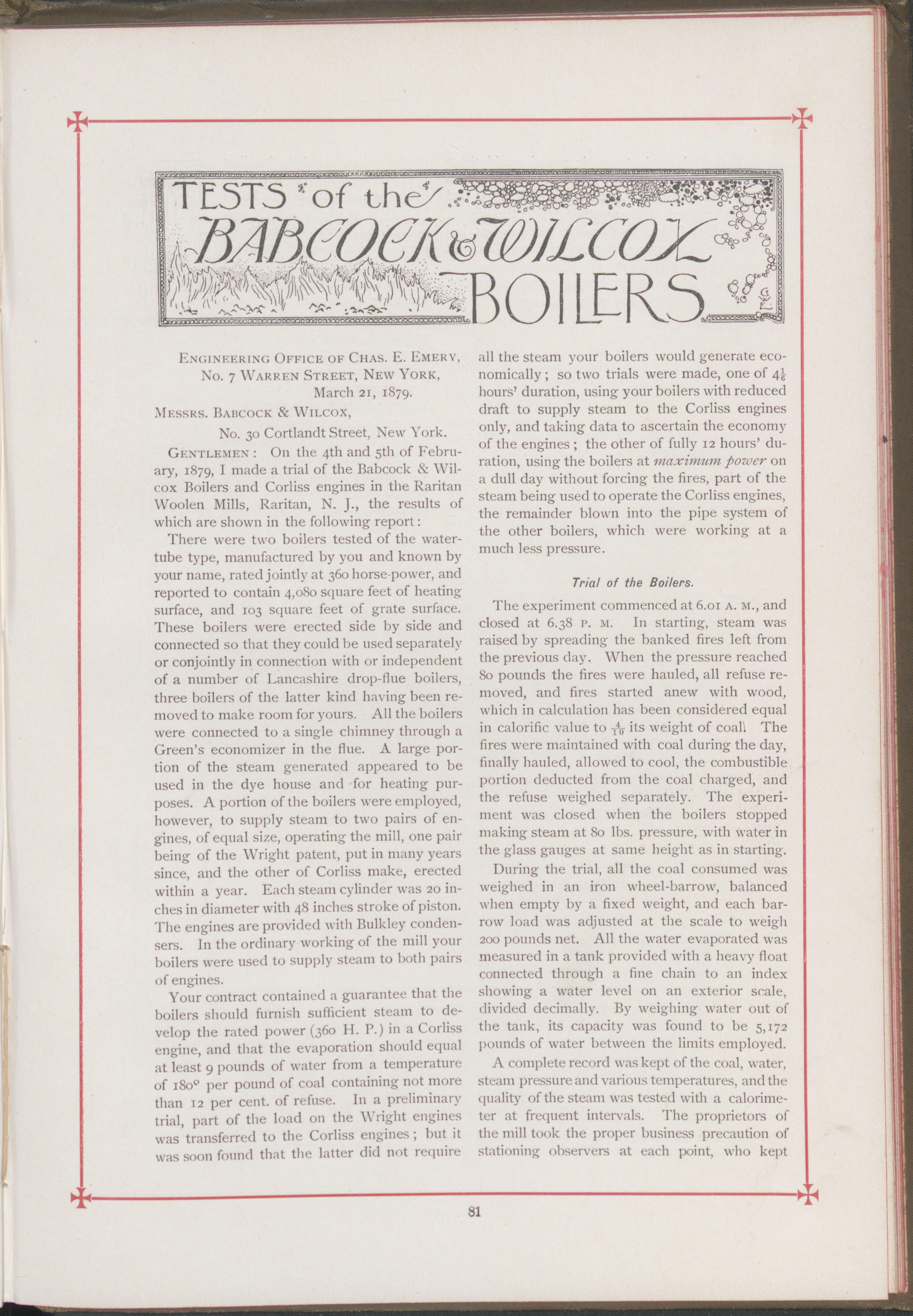

Engineering Office of Chas. E. Emery,
No. 7 Warren Street, New York,
March 21, 1879.
Messrs. Babcock & Wilcox,
No. 30 Cortlandt Street, New York.
Gentlemen : On the 4th and 5th of Febru-
ary, 1879, I made a trial of the Babcock & Wil-
cox Boilers and Corliss engines in the Raritan
Woolen Mills, Raritan, N. J., the results of
which are shown in the following report:
There were two boilers tested of the water-
tube type, manufactured by you and known by
your name, rated jointly at 360 horse-power, and
reported to contain 4,080 square feet of heating
surface, and 103 square feet of grate surface.
These boilers were erected side by side and
connected so that they could be used separately
or conjointly in connection with or independent
of a number of Lancashire drop-flue boilers,
three boilers of the latter kind having been re-
moved to make room for yours. All the boilers
were connected to a single chimney through a
Green’s economizer in the flue. A large por-
tion of the steam generated appeared to be
used in the dye house and for heating pur-
poses. A portion of the boilers were employed,
however, to supply steam to two pairs of en-
gines, of equal size, operating the mill, one pair
being of the Wright patent, put in many years
since, and the other of Corliss make, erected
within a year. Each steam cylinder was 20 in-
ches in diameter with 48 inches stroke of piston.
The engines are provided with Bulkley conden-
sers. In the ordinary working of the mill your
boilers were used to supply steam to both pairs
of engines.
Your contract contained a guarantee that the
boilers should furnish sufficient steam to de-
velop the rated power (360 H. P.) in a Corliss
engine, and that the evaporation should equal
at least 9 pounds of water from a temperature
of 1800 per pound of coal containing not more
than 12 per cent, of refuse. In a preliminary
trial, part of the load on the Wright engines
was transferred to the Corliss engines; but it
was soon found that the latter did not require
all the steam your boilers would generate eco-
nomically ; so two trials were made, one of 4J
hours’ duration, using your boilers with reduced
draft to supply steam to the Corliss engines
only, and taking data to ascertain the economy
of the engines ; the other of fully 12 hours’ du-
ration, using the boilers at maximum power on
a dull day without forcing the fires, part of the
steam being used to operate the Corliss engines,
the remainder blown into the pipe system of
the other boilers, which were working at a
much less pressure.
Trial of the Boilers.
The experiment commenced at 6.01 A. m., and
closed at 6.38 p. m. In starting, steam was
raised by spreading the banked fires left from
the previous day. When the pressure reached
80 pounds the fires were hauled, all refuse re-
moved, and fires started anew with wood,
which in calculation has been considered equal
in calorific value to its weight of coal'. The
fires were maintained with coal during the day,
finally hauled, allowed to cool, the combustible
portion deducted from the coal charged, and
the refuse weighed separately. The experi-
ment was closed when the boilers stopped
making steam at 80 lbs. pressure, with water in
the glass gauges at same height as in starting.
During the trial, all the coal consumed was
weighed in an iron wheel-barrow, balanced
when empty by a fixed weight, and each bar-
row load was adjusted at the scale to weigh
200 pounds net. All the water evaporated was
measured in a tank provided with a heavy float
connected through a fine chain to an index
showing a water level on an exterior scale,
divided decimally. By weighing water out of
the tank, its capacity was found to be 5,172
pounds of water between the limits employed.
A complete record was kept of the coal, water,
steam pressure and various temperatures, and the
quality of the steam was tested with a calorime-
ter at frequent intervals. The proprietors of
the mill took the proper business precaution of
stationing observers at each point, who kept
81
