COAL TIPS OR HOISTS
561
The whole of the pipes—pressure and return water—are solid drawn steel tubes
of the Mannesmann type.
At this dock eight tips, twenty-five cranes, as well as the dock gates, are manipulated
by hydraulic plant (z in Fig. 784) consisting of four double acting pumps, each of 600 H.P.,

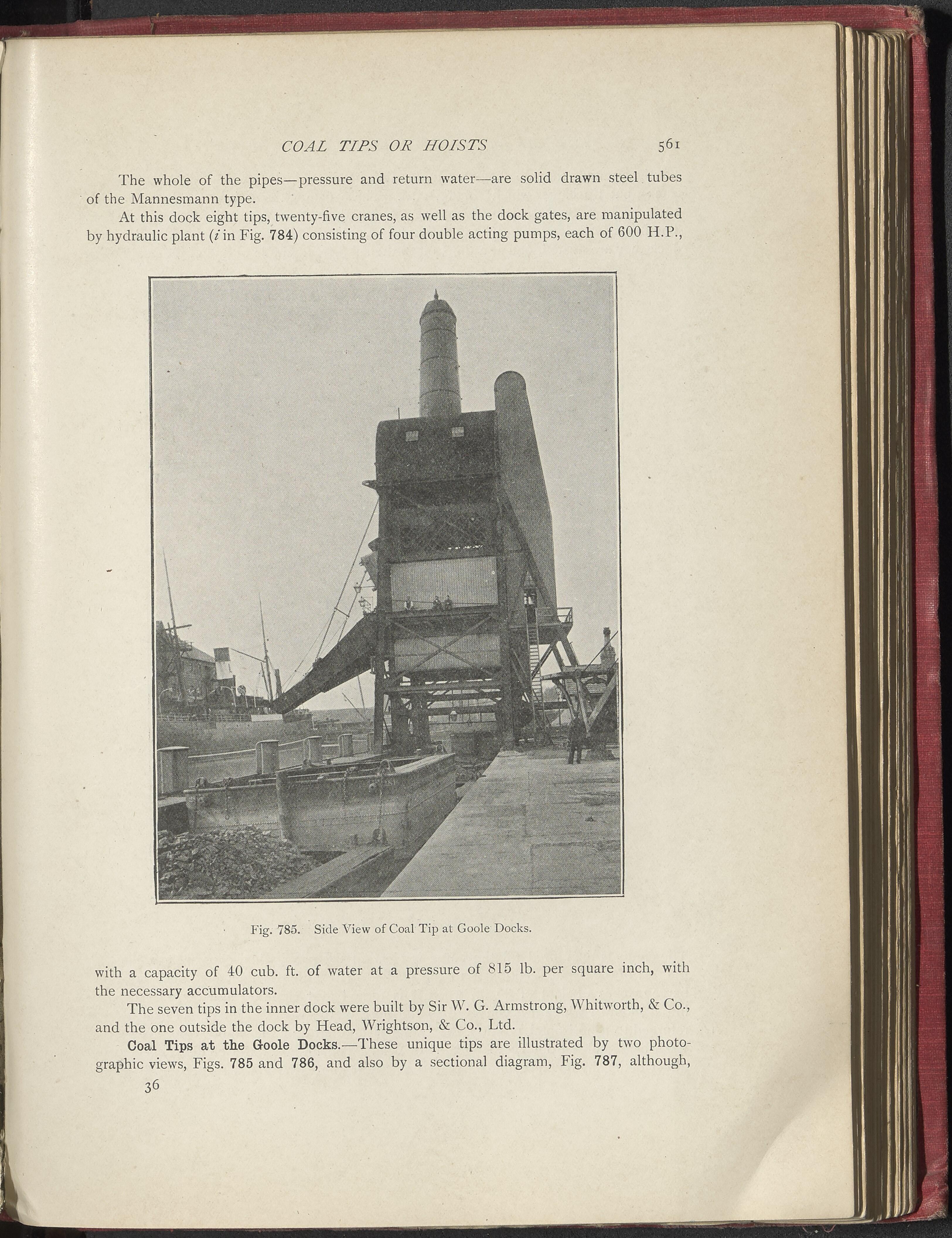

Fig. 785. Side View of Coal Tip at Goole Docks.
with a capacity of 40 cub. ft. of water at a pressure of 815 lb. per square inch, with
the necessary accumulators.
The seven tips in the inner dock were built by Sir W. G. Armstrong, Whitworth, & Co.,
and the one outside the dock by Head, Wrightson, & Co., Ltd.
Coal Tips at the G-oole Docks.—These unique tips are illustrated by two photo-
graphic views, Figs. 785 and 786, and also by a sectional diagram, Fig. 787, although,
