Being a Treatise on the Handling and Storing of Material such as Grain, Coal, Ore, Timber, Etc., by Automatic or Semi-Automatic Machinery, together with the Various Accessories used in the Manipulation of such Plant

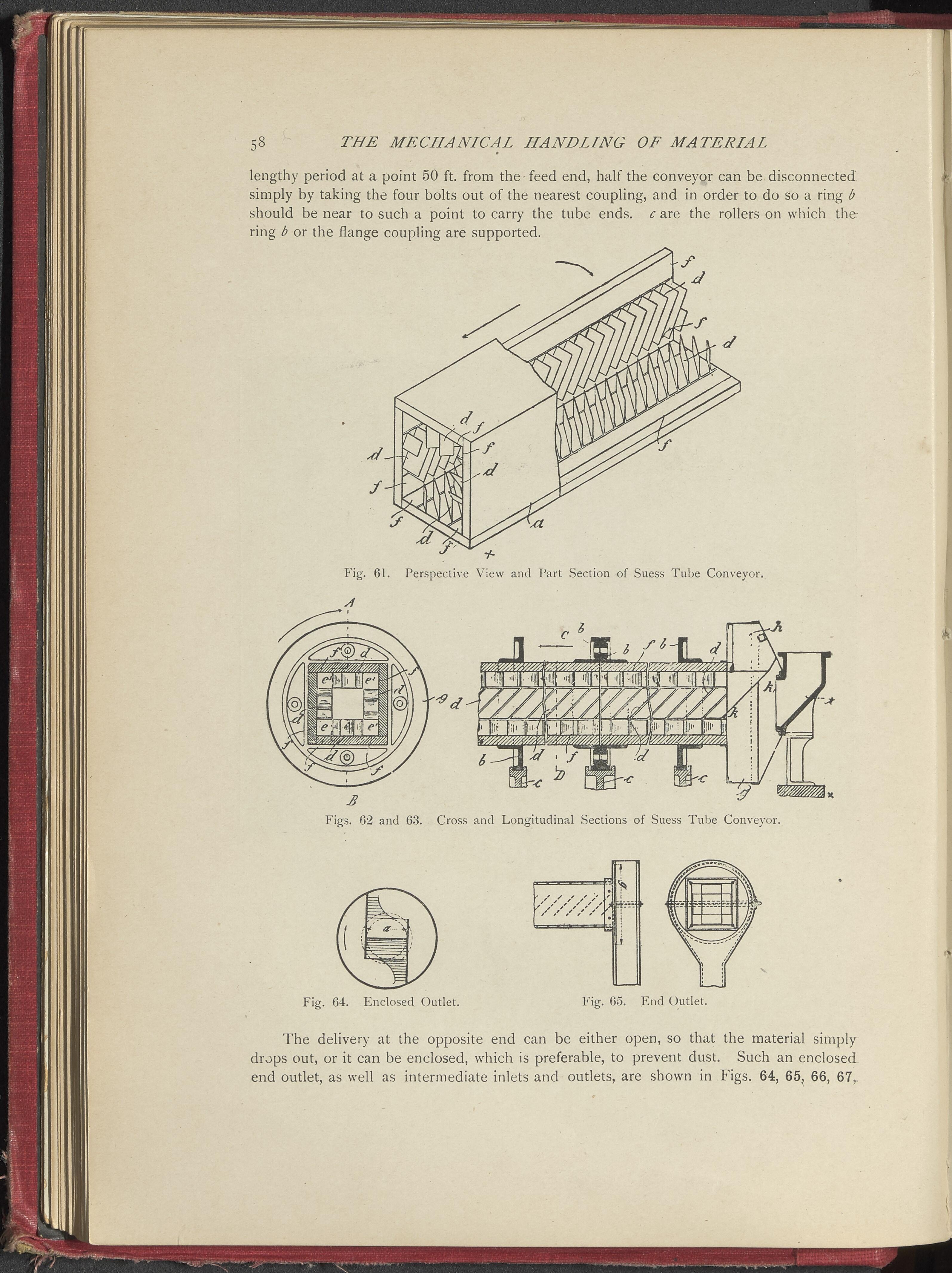

58 THE MECHANICAL HANDLING OF MATERIAL
lengthy period at a point 50 ft. from the feed end, half the conveyor can be disconnected
simply by taking the four bolts out of the nearest coupling, and in order to do so a ring b
should be near to such a point to carry the tube ends, c are the rollers on which the-
ring b or the flange coupling are supported.
Fig. (55. End Outlet.
The delivery at the opposite end can be either open, so that the material simply
drops out, or it can be enclosed, which is preferable, to prevent dust. Such an enclosed
end outlet, as well as intermediate inlets and outlets, are shown in Figs. 64, 65? 66, 67,
