STEEL PLATE CONVEYORS
99
The withdrawing of the feed from such a continuous steel plate has this drawback,
that the frequent joints in the band produce a rasping action on the material during the

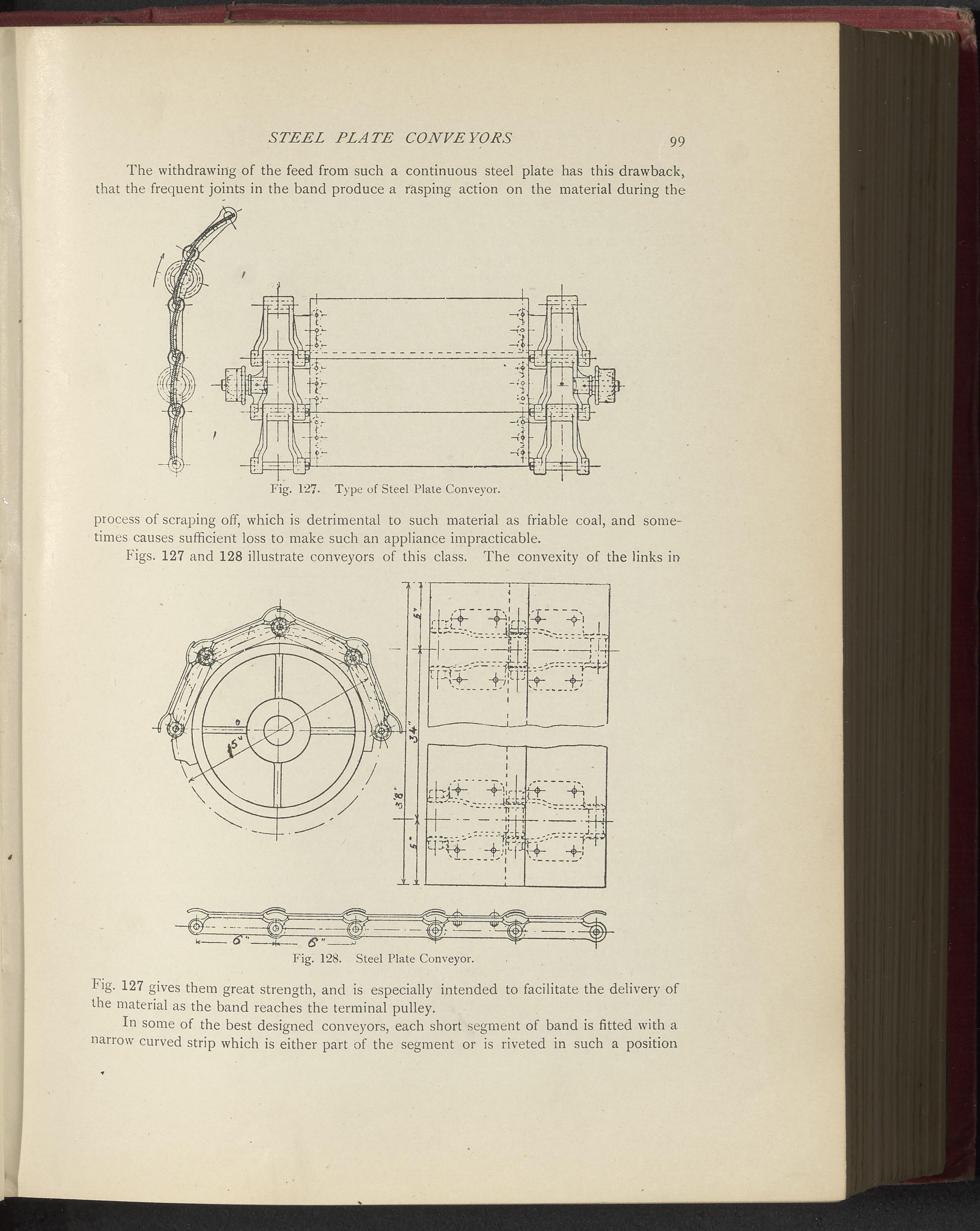

Fig. 127. Type of Steel Plate Conveyor.
process of scraping off, which is detrimental to such material as friable coal, and some-
times causes sufficient loss to make such an appliance impracticable.
Figs. 127 and 128 illustrate conveyors of this class. The convexity of the links in
Fig. 128. Steel Plate Conveyor.
Fig. 127 gives them great strength, and is especially intended to facilitate the delivery of
the material as the band reaches the terminal pulley.
In some of the best designed conveyors, each short segment of band is fitted with a
narrow curved strip which is either part of the segment or is riveted in such a position
